LaneTrace

LaneTrace shows an AI agent's run as a live sequence diagram: one lifeline per participant (the user, the orchestrator, each LLM, tool and sub-agent) and one arrow per event, drawn as it happens. Any past run can be replayed at 0.5×, 1× or 2× speed, or shown at once.

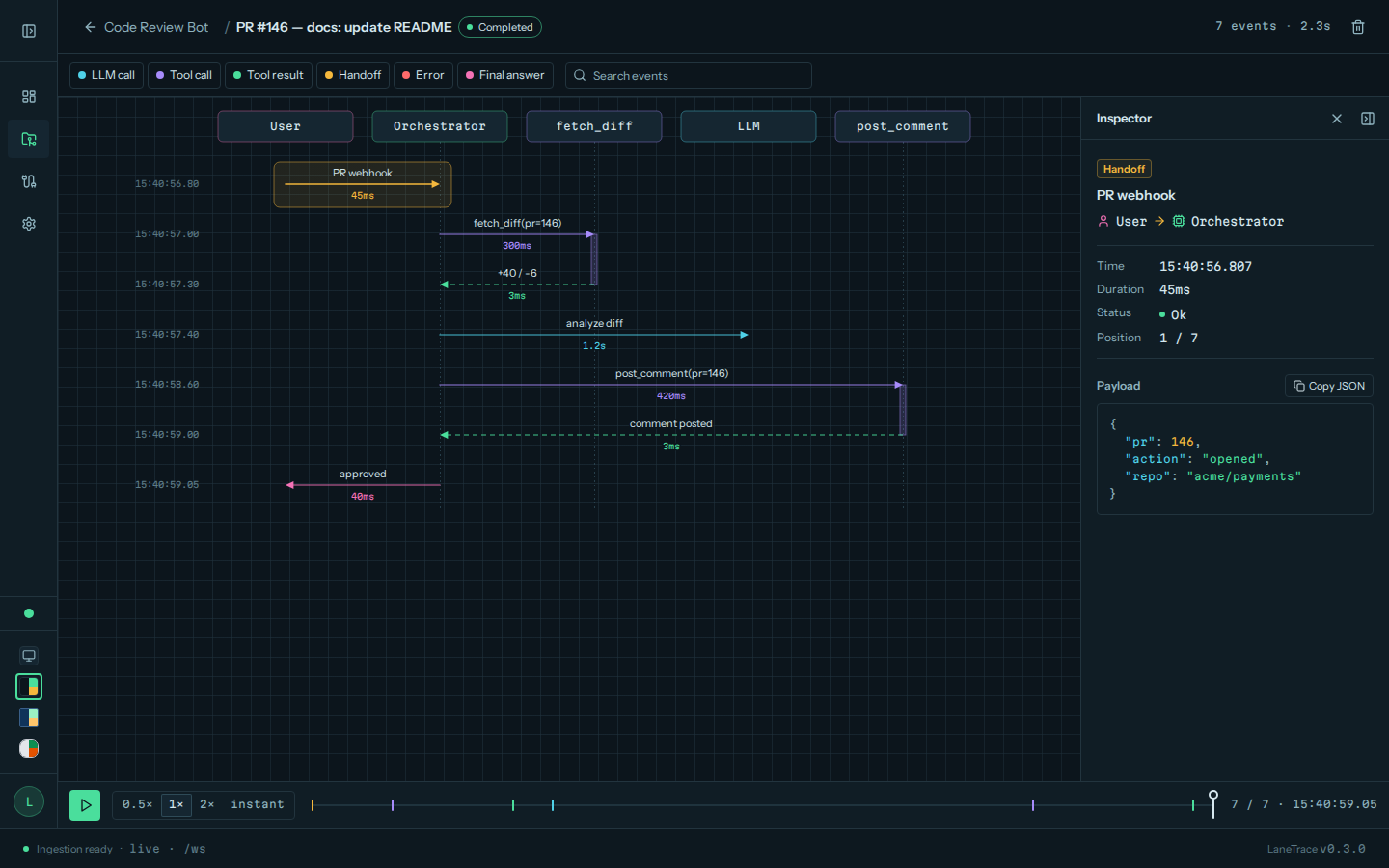

A run in the Phosphore theme

It ships as one Python package, lanetrace (also the import and the command):

  • a tracking SDK modelled on MLflow's: set_project(), start_run(), log_event(), @lanetrace.trace;
  • a LangChain and deepagents integration: lanetrace.langchain.autolog(), a middleware and two callback handlers;
  • the dashboard: lanetrace ui serves the API, a WebSocket live stream and the web interface, from one Python process (no Node or Bun at runtime).

By default the SDK writes to a SQLite file, ./lanetrace.db, and lanetrace ui reads that same file. Tracing needs no server, no account and no API key.

How it fits together

flowchart LR
    agent["Your agent<br/>SDK, autolog, middleware"] -- "writes (default)" --> db[("./lanetrace.db<br/>or PostgreSQL")]
    agent -- "POST /api/events<br/>(http tracking URI)" --> ui["lanetrace ui<br/>API and dashboard"]
    ui --- db
    ui -- "/ws live stream" --> browser["Browser"]

The tracking URI decides where runs go: the default SQLite file, any SQLAlchemy database URL, or a running lanetrace ui over HTTP. The dashboard reads new events from the database, so runs that the SDK writes there directly show up live as well.

Pick an integration

Your code Use
LangChain or deepagents, any setup lanetrace.langchain.autolog(): one line, the agent code doesn't change
An agent built for each invocation LaneTraceMiddleware, passed to create_agent or create_deep_agent
An async server that reuses a compiled agent, with sub-agents AsyncLaneTraceCallbackHandler, one per request
Any other Python code the fluent API
Another language POST /api/events

Next steps
